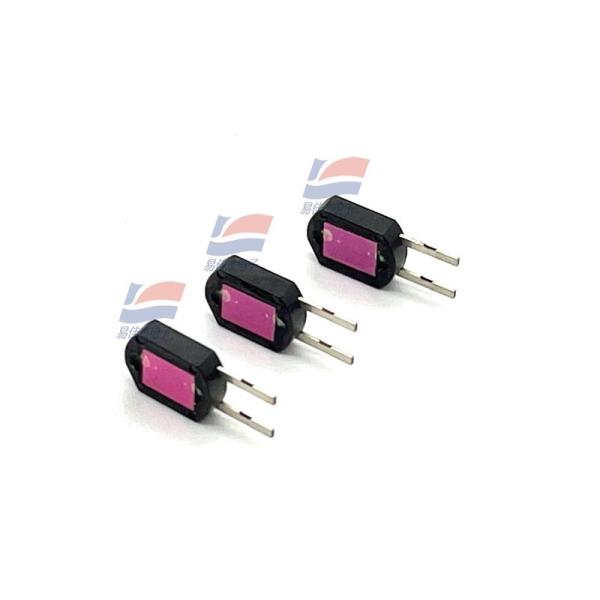

Silicon photodiodes S6429-01

RGB color sensor

The S6429-01 is a color sensor for the detection of monochromatic green light (λp = 540 nm) alone.

Features
-Plastic package (6 × 8 mm)
-Spectral response range: 480 to 600 nm (λp = 540 nm)
-Insensitive to near-infrared bands
-High sensitivity: 0.27 A/W typical (λ = λp)
-Low dark current

Silicon photodiodes S6428-01

RGB color sensor

The S6428-01 is a color sensor for the detection of monochromatic blue light (λp = 460 nm) alone.

Features
- Plastic package (6 × 8 mm)
- Spectral response range: 400 to 540 nm (λp = 460 nm)
- Insensitive to the near-infrared band
- High sensitivity: 0.22 A/W typical (λ = λp)
- Low dark current

Silicon photodiodes S6430-01

RGB color sensor

The S6430-01 is a color sensor for the detection of monochromatic red light (λp = 660 nm) alone.

Features
- Plastic package (6 × 8 mm)
- Spectral response range: 590 to 720 nm (λp = 660 nm)
- Insensitive to the near-infrared band
- High sensitivity: 0.45 A/W typical (λ = λp)
- Low dark current
