Product Description:

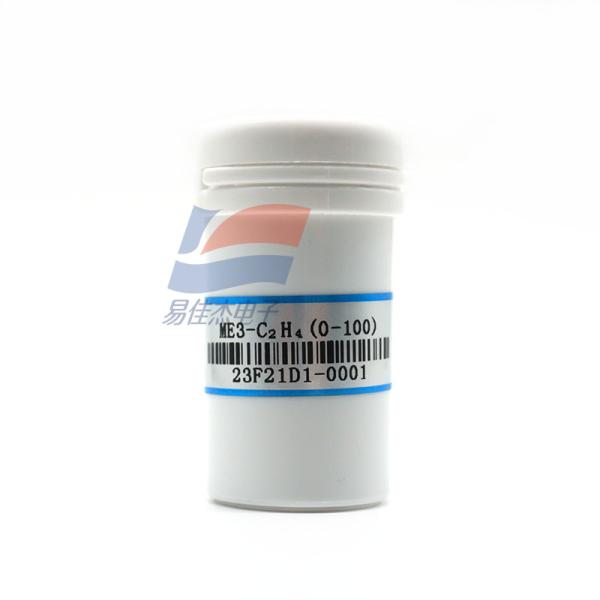

ME3-C2H4 Electrochemical Ethylene Sensor Is Used For Ethylene Detection In Industrial Sites And Environmental Protection Fields

Features:

ME3-C2H4 type electrochemical gas sensor According to the electrochemical principle, the use of the gas to be measured in the electrolytic cell working electrode electrochemical reaction, the current generated by the gas to be measured in the electrochemical reaction is proportional to its concentration and follows Faraday's law, therefore, by measuring the size of the reaction current can determine the concentration of the gas to be measured.

Item parameter

Detection gas Ethylene (C2H4)

Measuring range 0 ~ 100ppm

The maximum measurement limit is 200ppm

Sensitivity (0.070±0.015) µA/ppm

Resolution 0.5ppm

Response time (T90) < 20S

Bias voltage 0mV

Load resistance (recommended) 10Ω

Repeatability < 2% output value

The output linearity is linear

Stability (/ month) < 5%

Zero drift (-20℃ ~ 40℃) 10ppm

Temperature range -20℃ ~ 50℃

Humidity range 15% to 90%RH

Pressure range standard atmospheric pressure ±10%

Service life 3 years (in the air)
