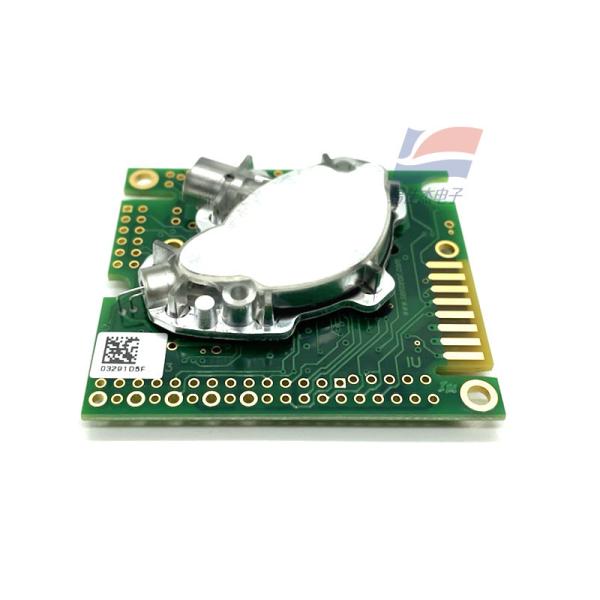

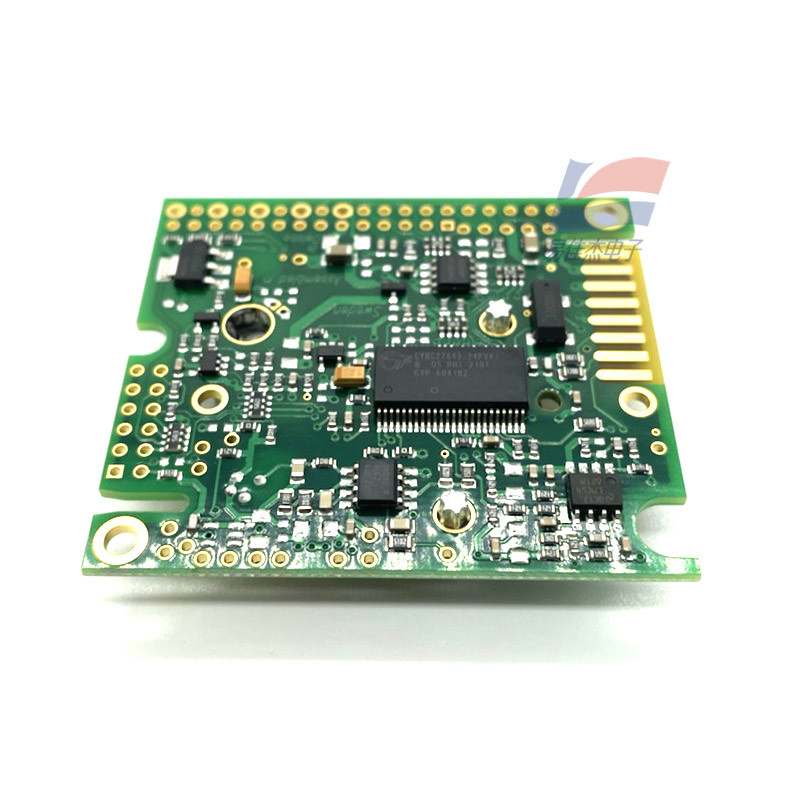

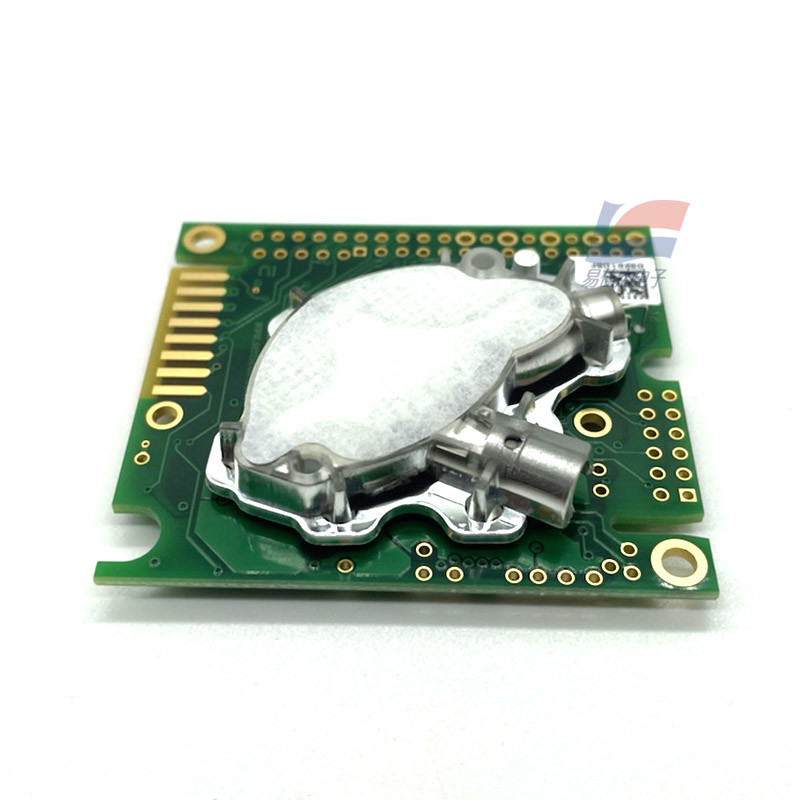

    YJJ K30 CO2 Gas Sensor 0-5000PPM Serial Communication

    Ask Lasest Price
    Brand Name : SenseAir
    Model Number : K30
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    YJJ K30 CO2 Gas Sensor 0-5000PPM Serial Communication

    Product Description:

    K30 CO2 Gas Sensor 0-5000PPM Serial Communication


    Features:

    communication

    Carbon dioxide sensor K30 specification

    Working principle: Non-dispersive infrared (NDIR)

    Measuring range: 0 ~ 5000ppm

    Measurement accuracy: ±30ppm

    Operating humidity: 0 ~ 95%RH Non-condensing

    Dimensions: 51×57×14mm

    Power supply: 4.5V ~ 14VDC

    Serial communication: UART,Modbus protocol

    Output 1:0 to 4VDC corresponds to 0 to 2000ppm

    Output 2:1 to 5VDC corresponds to 0 to 2000ppm

    Output 3: High > 800ppm, low < 700ppm

    Output 4: High > 1000ppm, low < 900ppm


    Specifications:

    Operating temperature0 ~ 50℃
    Working humidity0 ~ 95% non-condensing
    Storage temperature-40 ~ 70 ℃
    Size51×57×14mm
