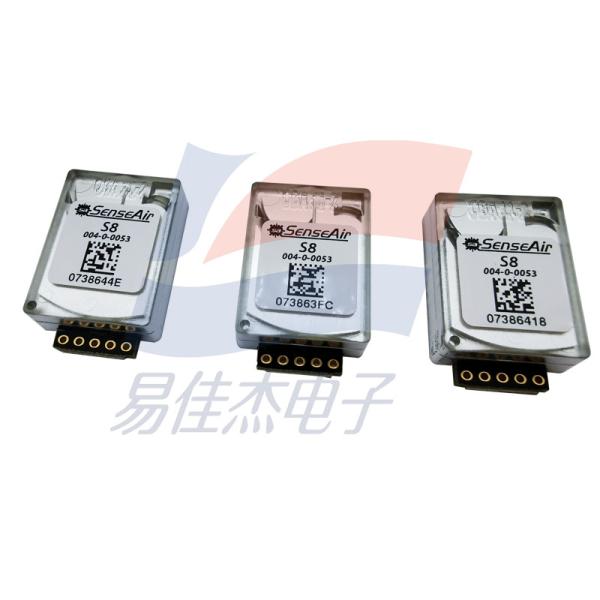

    S8-0053 Carbon Dioxide Gas Sensor Infrared Sensor Miniature Module NDIR

    Ask Lasest Price
    Brand Name : SenseAir
    Model Number : S8-0053
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000pcs/Month
    Delivery Time : 3-5Workingdays
    Price : Negotiable
    • Product Details
    • Company Profile

    S8-0053 Carbon Dioxide Gas Sensor Infrared Sensor Miniature Module NDIR

    S8-0053 Carbon Dioxide Gas Sensor Infrared Sensor Miniature Module NDIR


    Specification

    Note 1: Sensor is designed to measure in the range 400 to 2000 ppm with specified in the table accuracy. Nevertheless
    exposure to concentrations below 400 ppm may result in incorrect operation of ABC algorithm and shall be avoided
    for model with ABC on.
    Note 2: Sensor provides readings via UART in the extended range but the accuracy is degraded compared to specification in
    the table one.
    Note 3: In normal IAQ applications. Accuracy is defined after minimum 3 weeks of continuous operation with ABC on.
    However, some industrial applications do require maintenance. Please, contact SenseAir for further information!
    Note 4: Accuracy is specified over operating temperature range. Specification is referenced to certified calibration mixtures.
    Uncertainty of calibration gas mixtures (+-2% currently) is to be added to the specified accuracy for absolute
    measurements.
    Note 5: See specification { Modbus on SenseAir_R_S8 rev_P11_1_00.doc preliminary specification}
    Pressure dependence+ 1.6 % reading per kPa deviation from normal pressure
    Response time2 minutes by 90%
    Operating temperature5 to 30°C
    Operating humidity0 to 85% RH non condensed
    Storage temperature-40 to +70°C
    Dimensions (mm)33.5 x 20 x 8.5 mm (max dimensions)
    Weight< 8 grams
    Power supply4.5V to 5.25V
    Power consumption300 mA peak, 30 mA average
    Life expectancy15+ years
